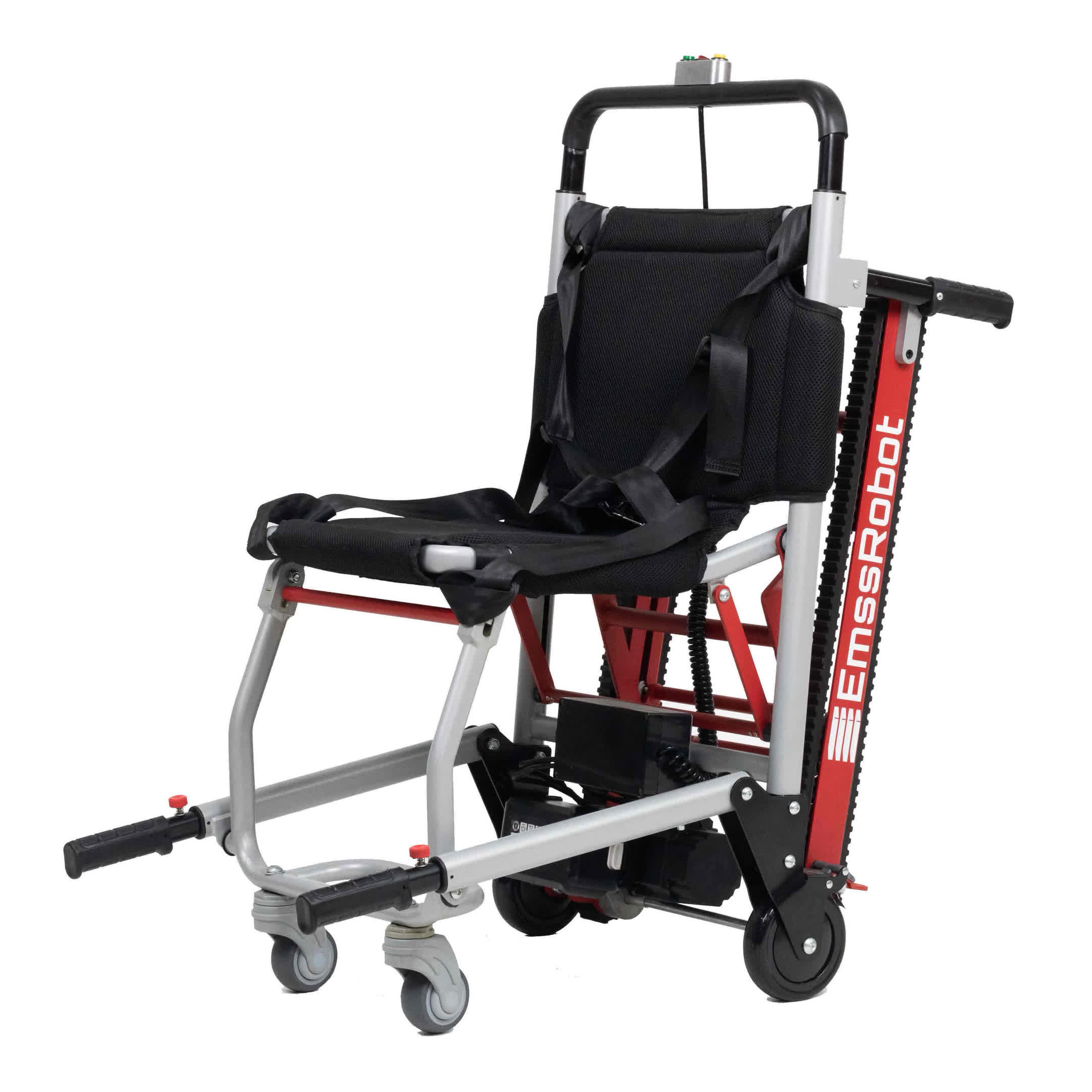

EmssRobot Nova
position:home >> Patient Lift >> EmssRobot Nova

- The first generation of lightweight emergency design concept

- Suitable for emergency | Outdoor | Children

- Comfortable cotton elastic seat cushion can be removed, replaced and washed

- Front wheel full-steering

- Rear wheel independent brake device

- Four-point aircraft seat belt

- Suitable for landing in narrow corridors

Certifications

(EU)2017/745 | EN ISO 13485:2016

EN ISO 14971:2019 | EN ISO 20417:2021

EN ISO 15223-1:2021 | EN 62336-1:2015

EN ISO 10993-1:2020 | ISO 10993-5:2009

ISO 10993-10:2021 | ISO 10993-23:2021

IEC 60601-1:2015+AMD1:2012+AMD2:2020 CSV

IEC 60601-1-2:2014+AMD1:2020 CSV

EN 12184:2009 | ISO 7176-1:2014 and Series

Technical information

Load Capacity

120KG

Product Weight

18.8KG

Product Weight Packaged

22KG

Unfolded Size

1450*500*1180

Folded Size

1000*500*300

Climbing Speed

Full Load 0.2m/s

Climbing Distance

40 Floors or 30 Minutes

Primary Material

Aluminum

Front Wheel Size

3” Inches

Rear Wheel Size

5” Inches

Download Brochure - EmssRobot Nova

download
- 3-inch front wheel/5-inch rear wheel solid rubber wheel (with brake device)
Maintenance-free solid|silent shock absorption|super load-bearing
- Body made of all-aluminum alloy
Lightweight design|High-strength compression resistance|All-scenario corrosion resistance
- High-strength surface coating is wear-resistant and scratch-resistant
Wear-resistant and durable|Corrosion-resistant and rust-resistant|Impact-resistant and non-deformable|Easy to clean and non-stick
- Adjustable height pull rod
Full-size coverage|Multi-scene switching|One-button locking
- Seat backrest
Removable and cleanable honeycomb seat cushion
- Conventional operation buttons
The most stable operating system Upstairs/Switch/Downstairs
- Fixed track lock/open track
Safely lock the track open/closed state to prevent misoperation
- High-strength rubber track
High strength and high load-bearing|Good pitch stability|Shock absorption and noise reduction|Strong ground adaptability|Abrasion and corrosion resistance
