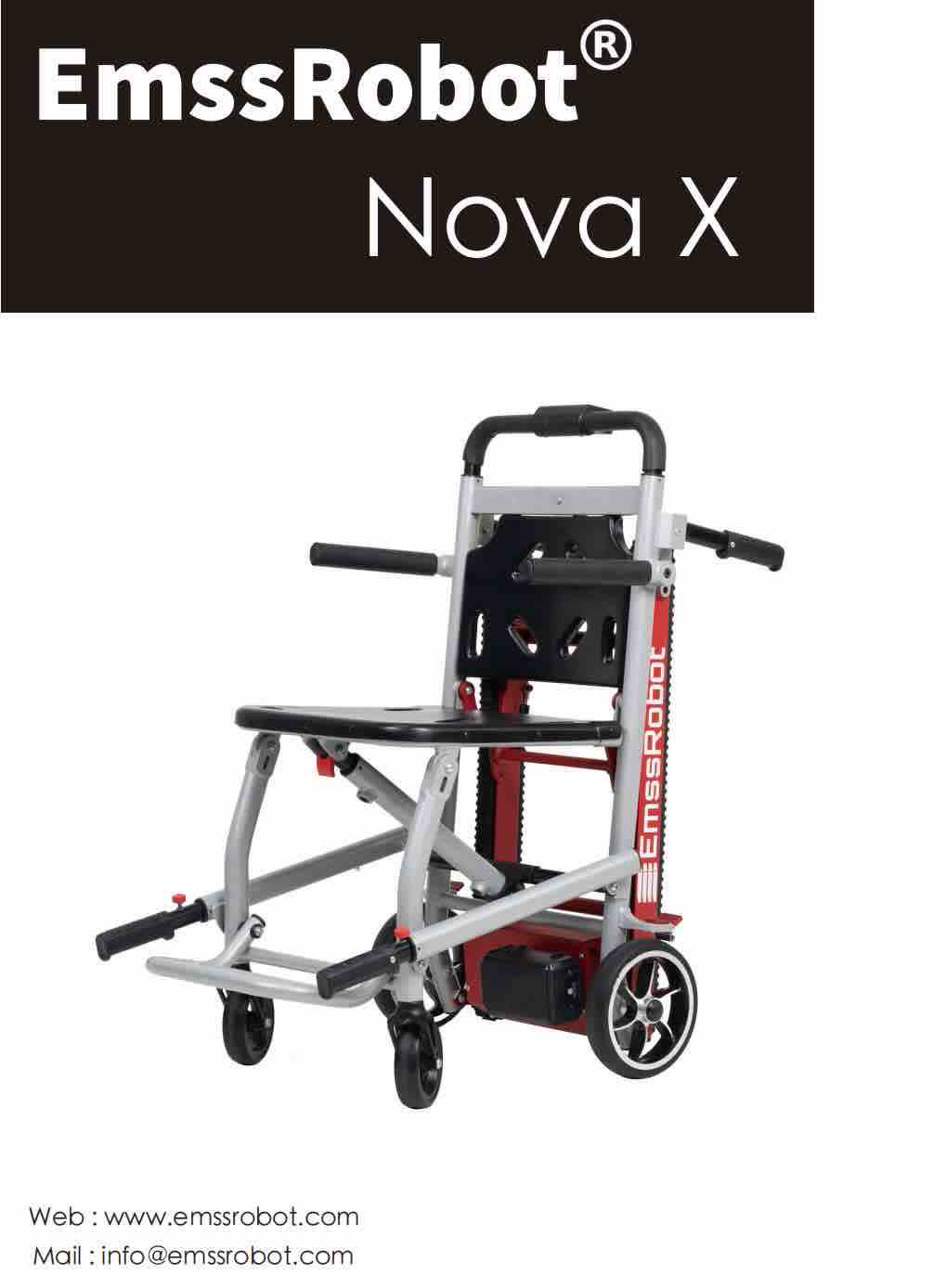

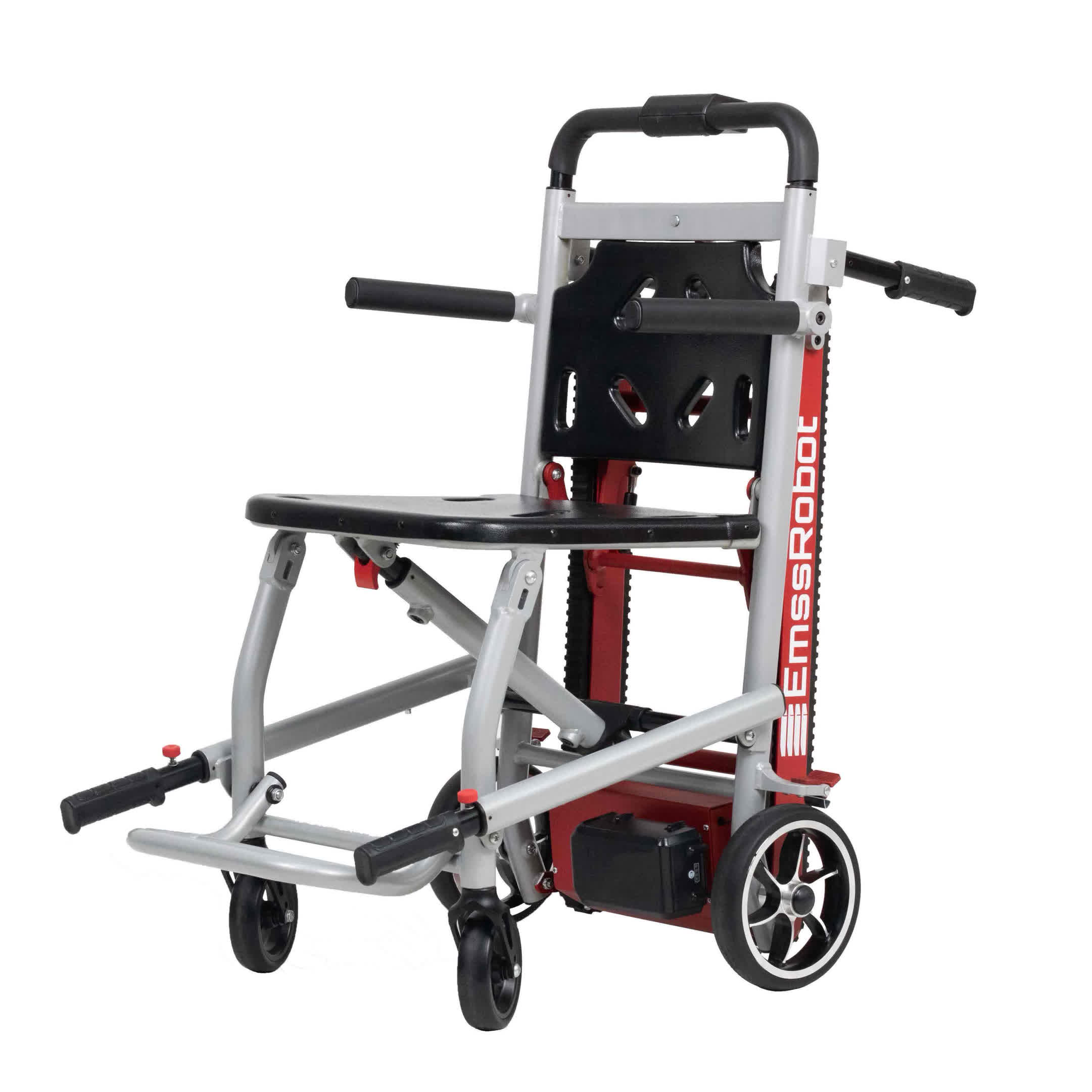

EmssRobot Nova X
position:home >> Patient Lift >> EmssRobot Nova X

- The pinnacle of the latest design

- Stable triangular structure main frame

- Intelligent control switch

- Opening/folding in one second

- Four-point aircraft safety belt

- Customized aluminum alloy wheels

- Smaller landing space

- Suitable for emergency | Outdoor .

Certifications

(EU)2017/745 | EN ISO 13485:2016

EN ISO 14971:2019 | EN ISO 20417:2021

EN ISO 15223-1:2021 | EN 62336-1:2015

EN ISO 10993-1:2020 | ISO 10993-5:2009

ISO 10993-10:2021 | ISO 10993-23:2021

IEC 60601-1:2015+AMD1:2012+AMD2:2020 CSV

IEC 60601-1-2:2014+AMD1:2020 CSV

EN 12184:2009 | ISO 7176-1:2014 and Series

Technical information

Load Capacity

120KG

Product Weight

20.5KG

Product Weight Packaged

24KG

Unfolded Size

955*508*708

Folded Size

960*508*286

Climbing Speed

3 Adjustable Speeds

Climbing Distance

40 Floors or 30 Minutes

Primary Material

Aluminum

Front Wheel Size

8” Inches

Rear Wheel Size

5” Inches

Download Brochure - EmssRobot Nova X

download
- 5-inch front wheel/8-inch rear wheel solid rubber wheel (with brake device)
Maintenance-free solid|silent shock absorption|super load-bearing
- Body made of all-aluminum alloy
Lightweight design|High-strength compression resistance|All-scenario corrosion resistance

- High-strength surface coating is wear-resistant and scratch-resistant
Wear-resistant and durable|Corrosion-resistant and rust-resistant|Impact-resistant and non-deformable|Easy to clean and non-stick
- Adjustable height pull rod
Full-size coverage|Multi-scene switching|One-button lock
- Intelligent control
Power display|Speed ​​regulation|Up/down|Led lighting
- Open/fold
Unique design allows track opening/folding to be completed in one second
- Double gas spring design
More stable and damping when folding/opening the track
- High-strength rubber track
High strength and high load-bearing|Good pitch stability|Shock absorption and noise reduction|Strong ground adaptability|Abrasion and corrosion resistance
