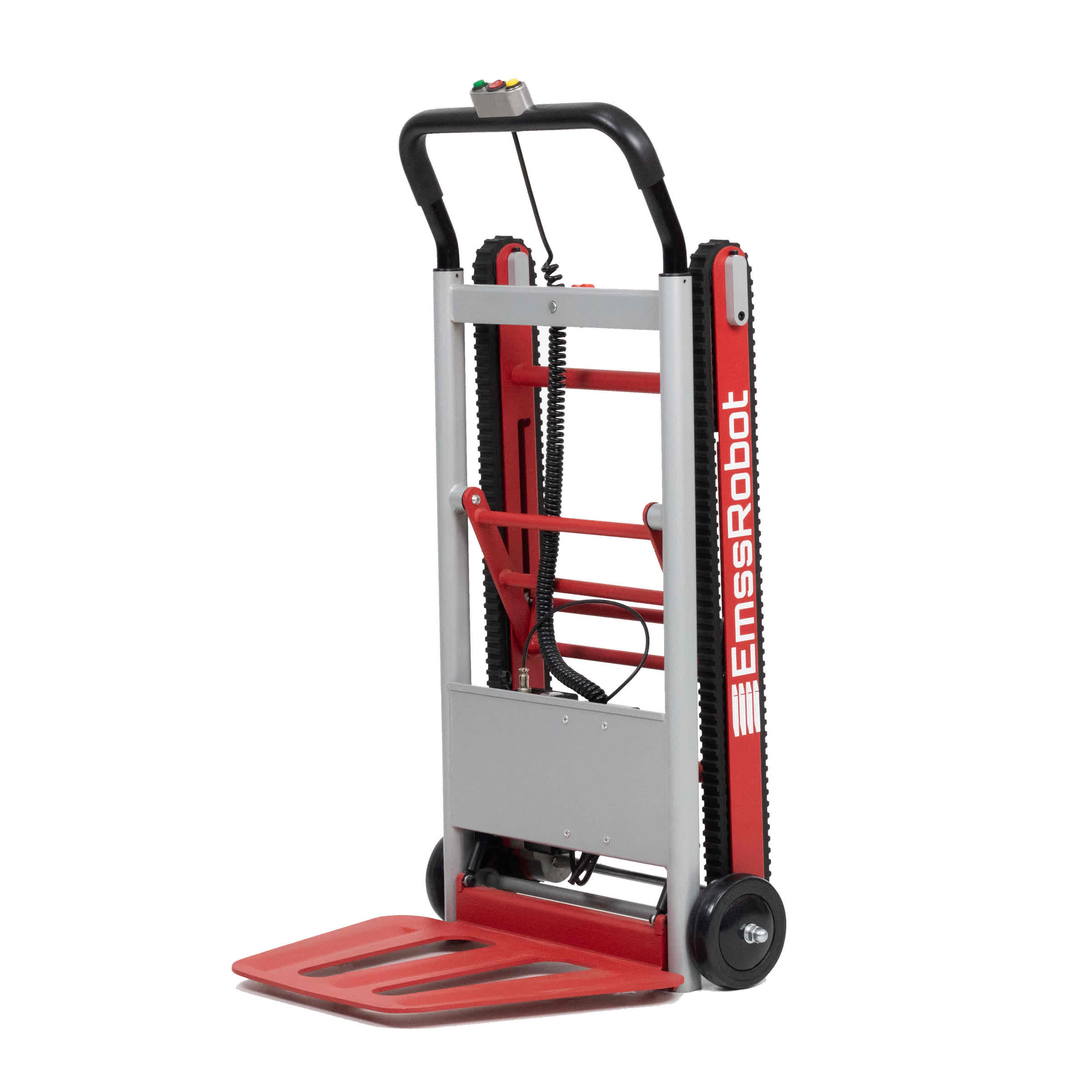

EmssRobot MINI
position:home >> Cargo Lift >> EmssRobot MINI

- Simple structure and stable operating system.

- Suitable for home use

- Ultra-light weight makes outdoor use easier

- Storage space is easier after folding

- Simple Control Buttons

- 5mm thick aluminum alloy platform

- Telescopic pull rod makes climbing stairs easier

Certifications

EMC Directive - 2014/30/EU

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021

EN ISO 12100:2010

EN 60204-1:2018

Technical information

Load Capacity

80KG

Product Weight

14.05KG

Unfolded Size

1425*504*486 (mm)

Folded Size

875*504*175 (mm)

Platform Size

340*470 (mm)

Climbing Speed

Fixed Speed

Climbing Distance

24 Floors or 40 Minutes

Lithium Battery

24V 5Ah

Support Wheel Size (F/R)

0 Inch / 5 Inch

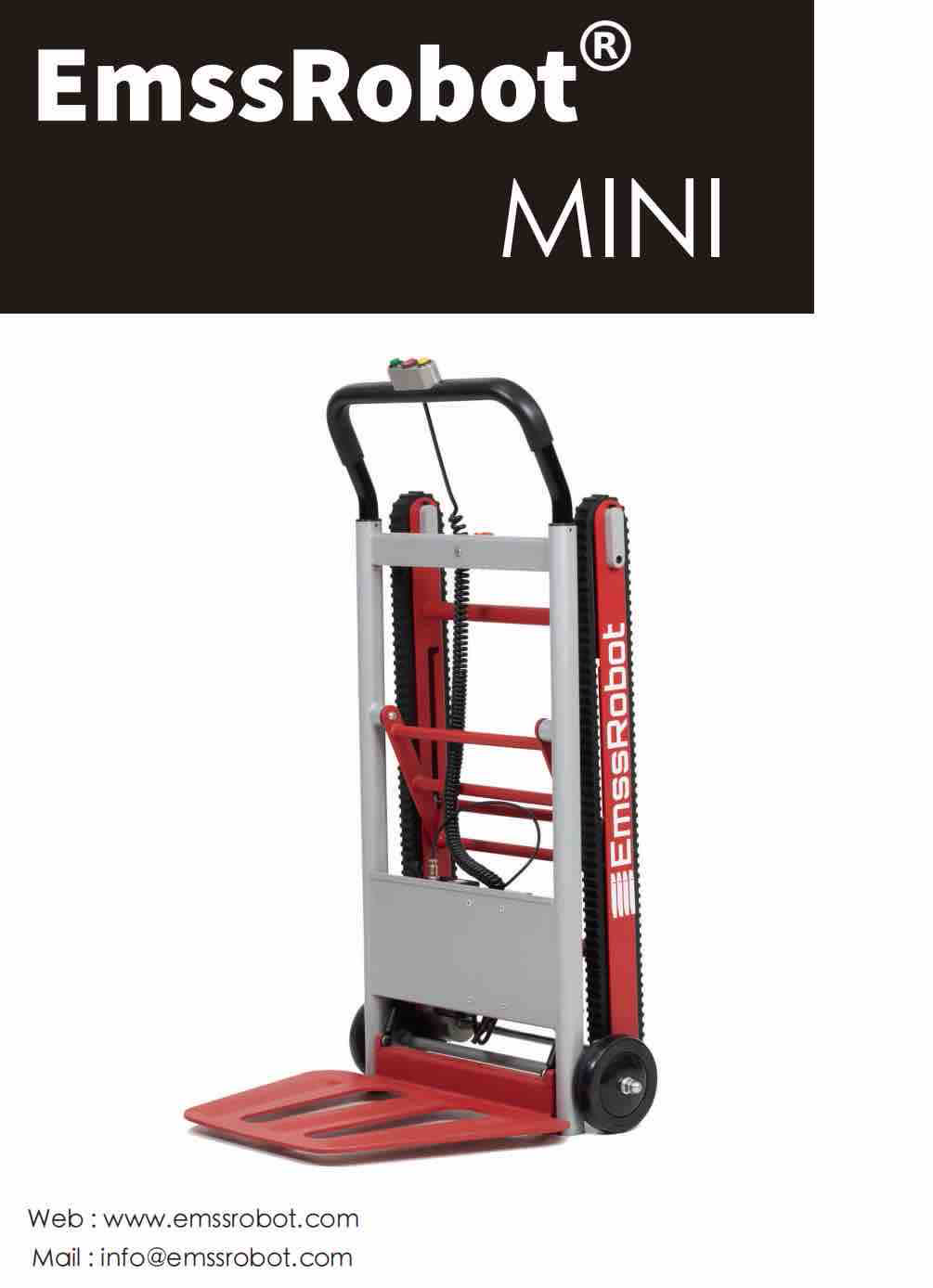

Download Brochure - EmssRobot MINI

download
- 5-inch solid rubber wheels
Maintenance-free solid wheels | Quiet and shock-absorbing | Superior load-bearing capacity.
- All-aluminum alloy body
Lightweight design | High-strength compression resistance | All-scenario corrosion resistance.
- High-strength surface coating, wear-resistant and scratch-resistant
Wear-resistant and durable | Corrosion-resistant and rust-resistant | Impact-resistant and non-deformable | Easy-to-clean, non-stick bottom.
- Adjustable height handle
Full-size coverage | Multiple scene switching | One-touch locking.
- Curved handle design
Ergonomic design
- Dual spring design
Excellent stability and damping performance when the platform is folded/opened.
- Elastic connecting line
Long service life and controllable extension and retraction.
- Track lock/unlock function
Securely locks the track in the open/closed state to prevent accidental operation.
- Track control adjuster
Adjustable track tension and can be used for track replacement.
- Removable lithium battery
Battery panel displays battery level; battery can be removed and charged separately.
- High-strength rubber tracks
High strength and load-bearing capacity | Shock and noise reduction | Wear-resistant.
- Stamping-reinforced aluminum alloy baseplate
Longitudinal ribs are stamped onto the baseplate surface to increase bending and torsional strength.
