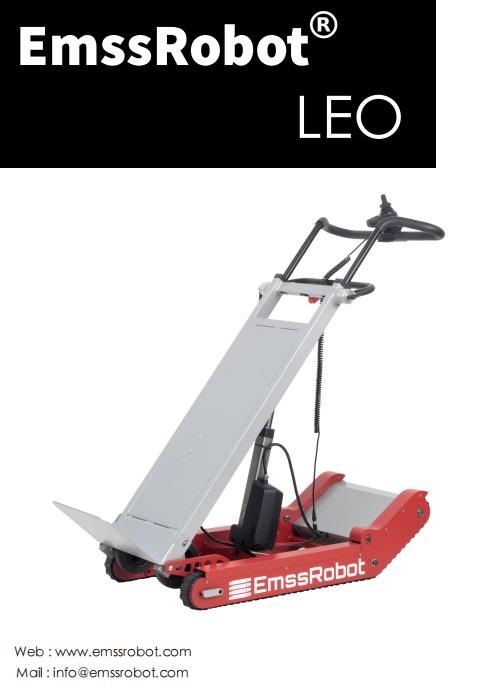

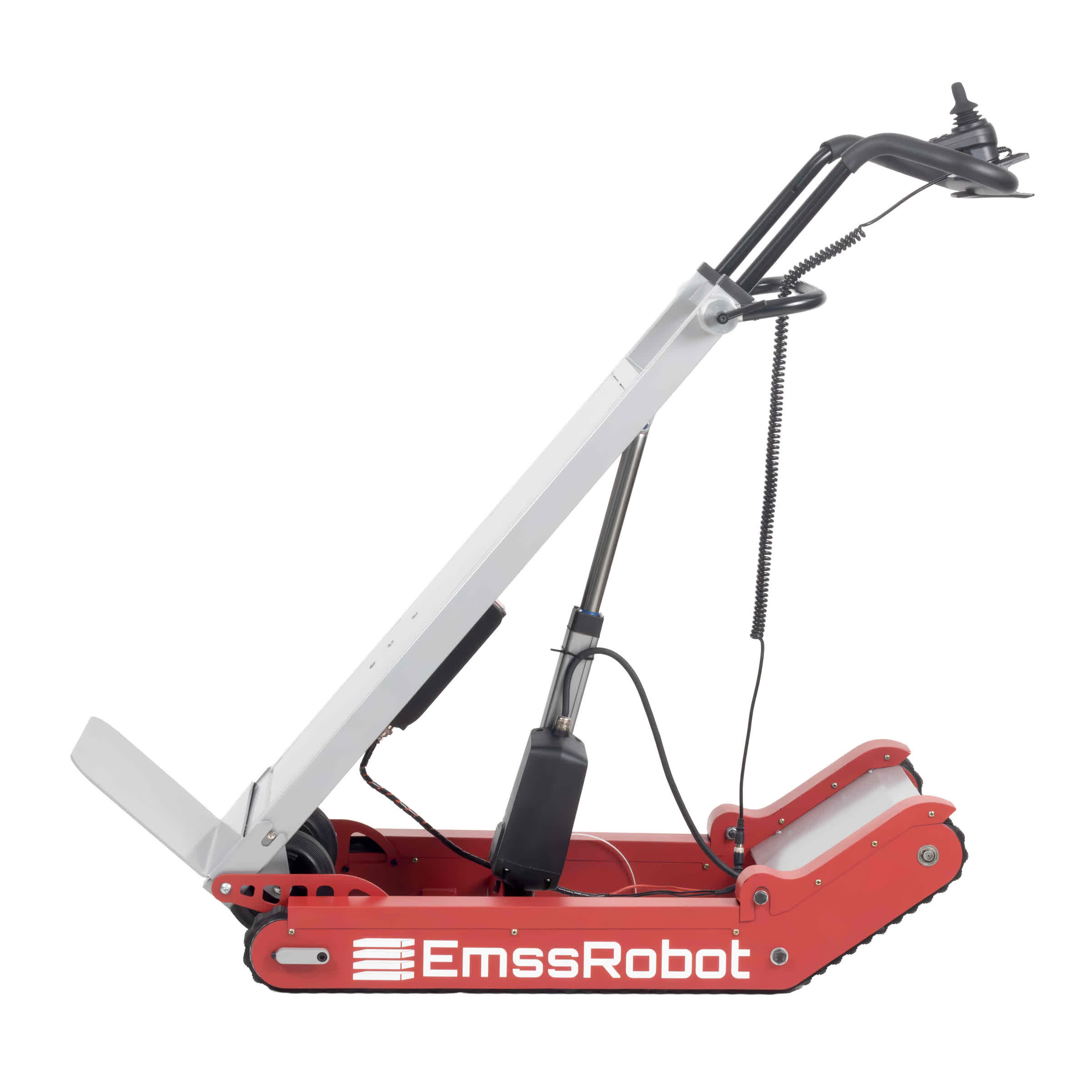

EmssRobot Leo
position:home >> Cargo Lift >> EmssRobot Leo

An all-terrain stair climber

Larger cargo loading platform

- 300KG carrying capacity

- Cargo level lifting stair climbing

- Intelligent control joystick

- Stronger tracks

- 360-degree rotation in place

Certifications

EMC Directive - 2014/30/EU

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021

EN ISO 12100:2010

EN 60204-1:2018


Technical information

Load Capacity

300KG

Product Weight

57KG

Unfolded Size

1586*500*1068 (mm)

Folded Size

330*500*1300 (mm)

Platform Size

250*365 (mm)

Climbing Speed

Adjustable

Climbing Distance

40 Floors or 40 Minutes

Lithium Battery

24V 16Ah

Support Wheel Size

7 Inch

Download Brochure - EmssRobot Leo

download
- 4-inch heavy-duty rubber wheel
Maintenance-free solid|silent shock absorption|super load-bearing
- Body made of all-aluminum alloy
Lightweight design|high-strength pressure resistance | corrosion resistance in all scenarios
- Removable Aluminum Alloy Base Plate
Reduced Packaging Size | Increased Expandability | Customizable to Needs
- Adjustable Angle Handle
Adjust the angle according to different usage conditions.
- Adjustable platform tilt angle
Adapt to different stair angles
- L-shaped crawler structure
Better contact with the first step when going upstairs,
- Heavy-duty crawler
Better contact with the stairs when climbing, the width of the crawler teeth (50mm) can be used on inclined stairs
- Intelligent control joystick
360° control of track direction | Platform tilt up/platform tilt down | Speed ​​increase/speed decrease
- Pull rod folding device
Quickly fold the pull rod in one second to save storage space
- Lithium battery with anti-theft lock
Large-capacity lithium battery pack with key lock

What do you want to transport ?

EmssRobot provides upstairs and downstairs transportation solutions for different industries
