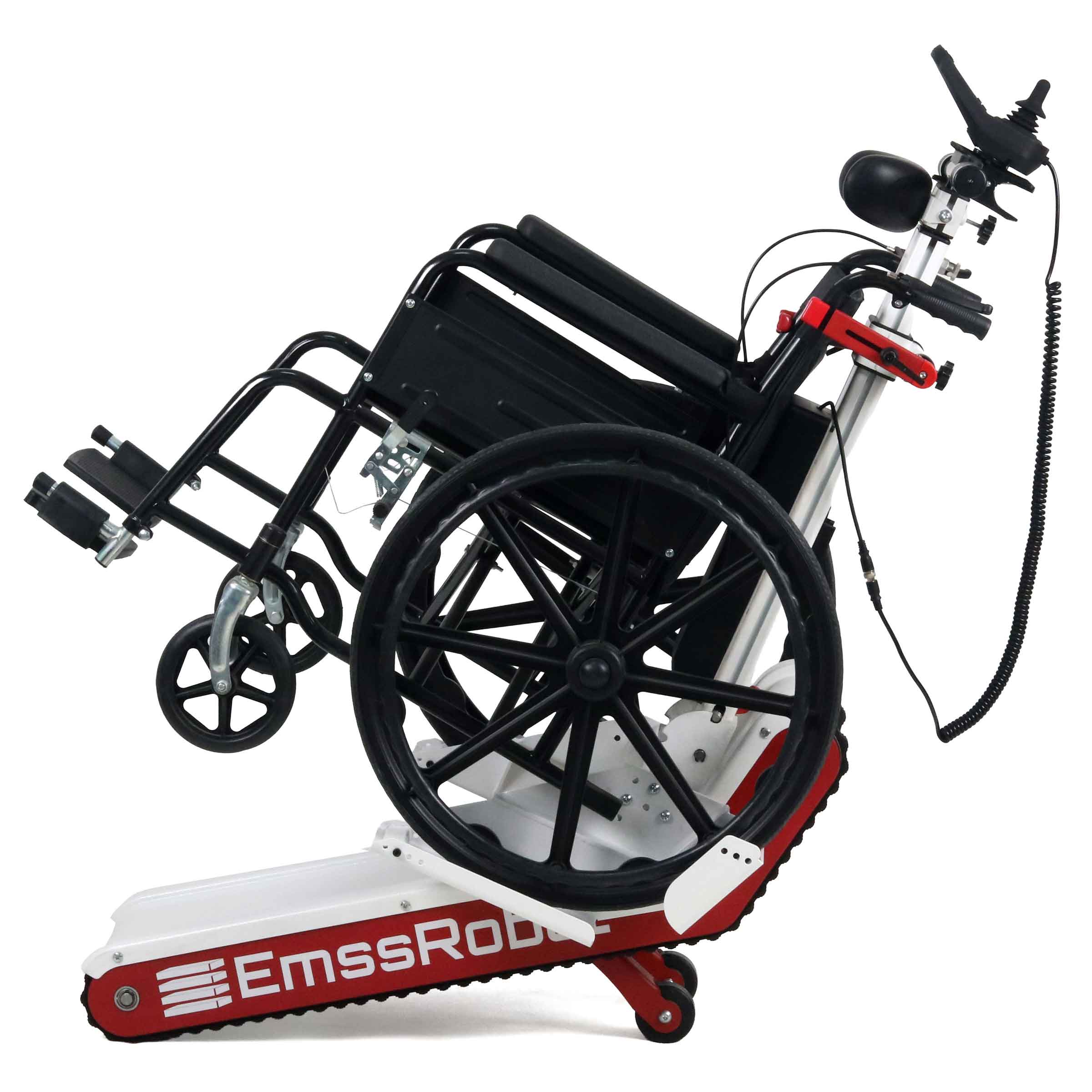

EmssRobot Synthor A
position:home >> Patient Lift >> EmssRobot Synthor A

- New fully automatic design for 2026

- Suitable for all sizes of manual wheelchairs | Children's wheelchairs

- Ultrasonic automatic recognition

- Sensor automatic recognition

- Computer board automatic judgment

- Steering via tracks

- Adjustable headrest height

- Adjustable track speed and opening angle

- Adjustable lever height

- Removable lithium battery

Certifications

(EU)2017/745 | EN ISO 13485:2016

EN ISO 14971:2019 | EN ISO 20417:2021

EN ISO 15223-1:2021 | EN 62336-1:2015

EN ISO 10993-1:2020 | ISO 10993-5:2009

ISO 10993-10:2021 | ISO 10993-23:2021

IEC 60601-1:2015+AMD1:2012+AMD2:2020 CSV

IEC 60601-1-2:2014+AMD1:2020 CSV

EN 12184:2009 | ISO 7176-1:2014 and Series

Technical information

Load Capacity

130 KG

Product Weight

55 KG

Unfolded Size

1374*727*972 (mm)

Folded Size

332*727*972 (mm)

Lithium Battery

24V 5AH

Climbing Speed

Adjustable

Headrest Size

227*88 (mm)

Download Brochure - EmssRobot Synthor A

download
- All-aluminum alloy body
Lightweight, high-strength, and pressure-resistant
- High-strength surface coating, wear-resistant and scratch-resistant
Wear-resistant, corrosion-resistant, and rust-proof
- Ultrasonic detector
Comprehensive distance detection
- Angle sensor
Comprehensive detection of platform and track angles
- Autonomous robot
Makes judgments and responds accordingly based on sensor data
- Assist support wheels
Assists in climbing stairs during automated operation
- Adjustable height handle
All-around coverage | Multi-scene switching | One-button locking
- Automatic wheelchair tilting function
Adjusts the angle for different stair angles
- Heavy-duty track
Ensures closer contact with the stairs when climbing; wide teeth (50 mm) allow use on inclined stairs
- Folding handle mechanism
Quickly folds the handle in one second, saving storage space
